| Max. output power (kW): | 110 |
| Rated output power (kW): | 100 |
| Rated current (A): | 144 |
| Rated frequency (Hz): | 50/60 |
| Battery voltage range (V): | 420~850 |
| Dimension W*D*H (mm): | 1,200*800*2,050 |
| เน้น: | 100kW industrial hybrid inverter,110kVA output hybrid inverter,triple MPPT industrial inverter |

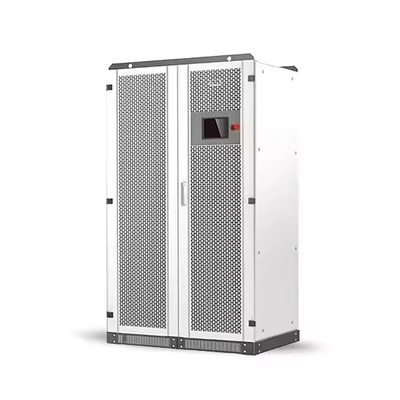

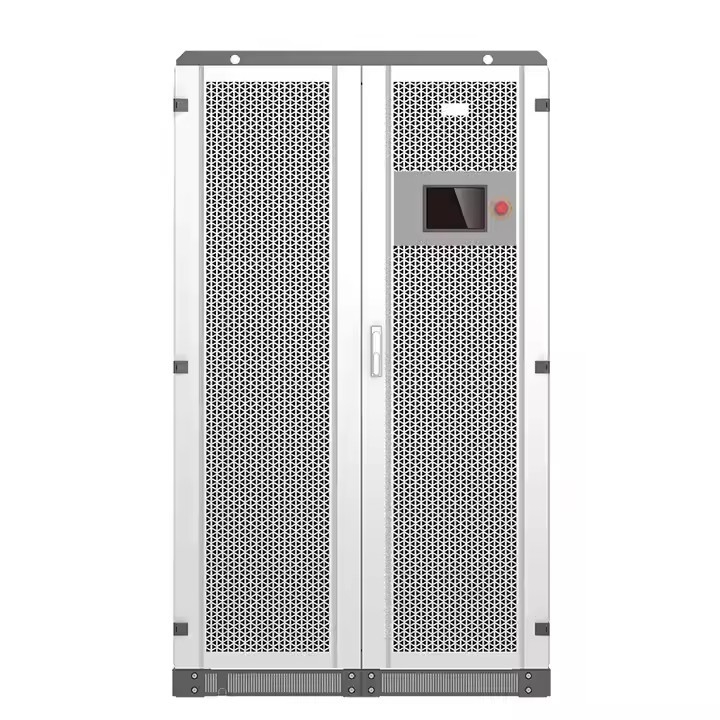

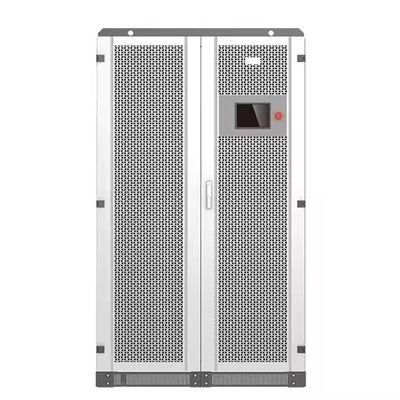

This 100kW three-phase hybrid inverter is engineered for industrial facilities and large-scale commercial operations requiring high-density power conversion and advanced grid interaction. Unlike smaller 30kW and 50kW models, it delivers 110kVA peak output with triple MPPT tracking, making it ideal for factories, data centers, and utility-scale microgrids.
100kW continuous output (110kVA peak)
Powers heavy machinery, HVAC systems, and production lines with stable three-phase electricity. The 10% overload capacity (110kVA) ensures reliable performance during motor starts and production surges.
Triple MPPT inputs (1,000V max PV voltage)
Three independent trackers with 120-240kW PV input capacity, allowing for complex solar array configurations (e.g., mixed rooftop, carport, and ground-mounted systems). The 420-850V MPPT range optimizes high-voltage string designs for maximum efficiency.
<3% total harmonic distortion (THD)
Delivers cleaner power than traditional diesel generators, protecting sensitive industrial equipment such as CNC machines, laser cutters, and server farms.
420-850V battery voltage compatibility
Directly integrates with modern 600-800V lithium battery systems, eliminating the need for additional DC-DC converters and improving system efficiency by 2-3%.
120kW maximum charging power
Rapidly replenishes 500kWh+ battery banks in under 4 hours, ensuring uninterrupted power for 24/7 operations. Adaptive charging profiles extend battery lifespan.
Grid services & peak shaving
Supports virtual power plant (VPP) participation, demand response programs, and time-of-use (TOU) optimization to reduce energy costs.
-30°C to 55°C operational range
Arctic-grade components ensure cold-start capability at -25°C, while advanced thermal management maintains full output up to 45°C (with derating above).
IP20-rated enclosure with reinforced cooling
Dual high-speed fans with dust filters ensure optimal thermal performance in harsh industrial environments.
110% continuous overload & 120% short-term burst
Handles heavy inductive loads (e.g., compressors, crushers) without voltage fluctuations.
Parallel operation (up to 6 units = 600kW total)
Master-slave synchronization ensures balanced power sharing across multiple inverters.
Advanced grid interaction
Anti-islanding protection, frequency-watt response, and reactive power control for utility compliance.
Remote monitoring & predictive maintenance
Ethernet/4G connectivity for real-time performance tracking and fault alerts.
| Category | Parameter | Value | Operational Impact |
|---|---|---|---|
| AC Output | Rated Power | 100kW | Powers small factories or 100+ households |
| Peak Current | 144A | Supports 200HP motor starts | |
| PV Input | Max. Array Power | 240kW | 2x more PV capacity than 50kW model |
| MPPT Efficiency | 99.5% | Minimizes shading losses | |
| Battery | Max. Discharge Current | 144A | Sustains 100kW output for 5+ hours |
| Physical | Dimensions (W×D×H) | 1,200×800×2,050mm | Requires forklift installation |
| Weight | 1,120-1,180kg | Heavy-duty steel frame |
IEC 62109-1: Full safety compliance for industrial environments
VDE-AR-N 4105: German grid-connection standards
EN 61000-6-4: EMC performance for factories
Manufacturing Plants
Reduces peak demand charges by 30-50% through solar self-consumption
Seamless backup power transition during outages
Data Centers
<20ms grid-to-battery switching for uninterrupted uptime
Integrates with existing UPS systems
Utility Microgrids
Supports islanding mode for community resilience
Service Interval: 12 months or 10,000 operating hours
Expected Lifespan: 10+ years (capacitor replacement at year 8)
ROI Period: 3-5 years for industrial users
